Asus
TUF GAMING X870E-PLUS WIFI7 matična ploča(PLO03771)
Šifra:
Barkod: 4711636100342
- Brend: Asus
Proizvod je dodat u korpu

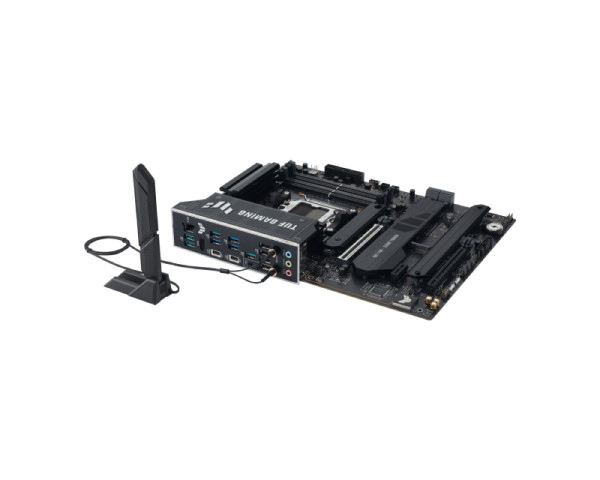

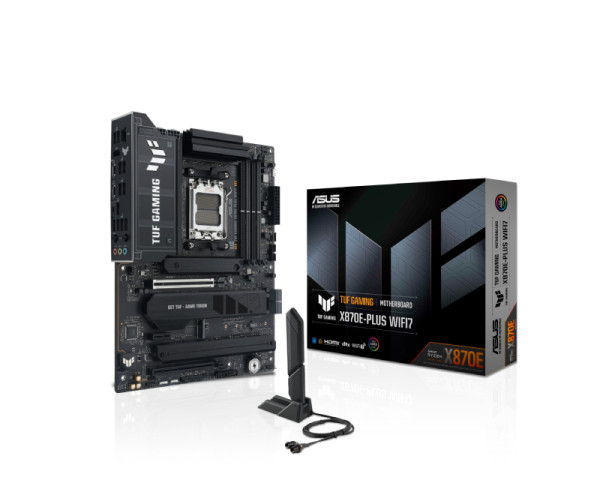

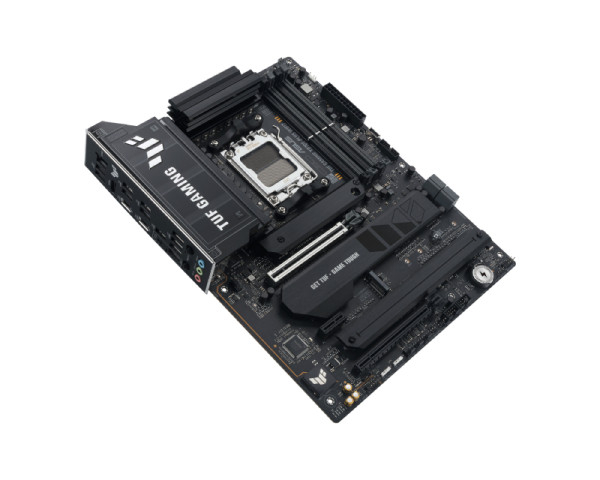

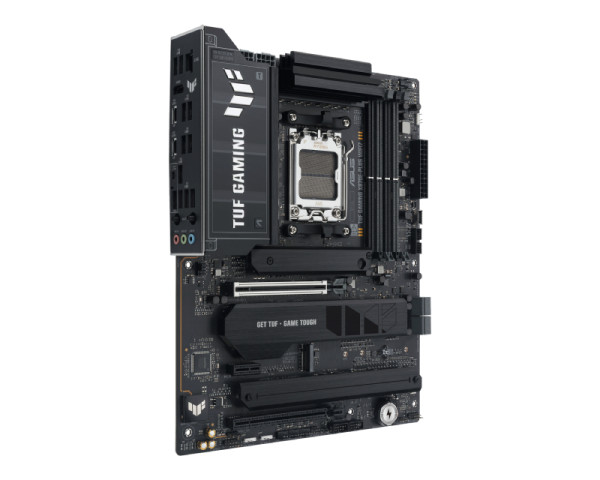

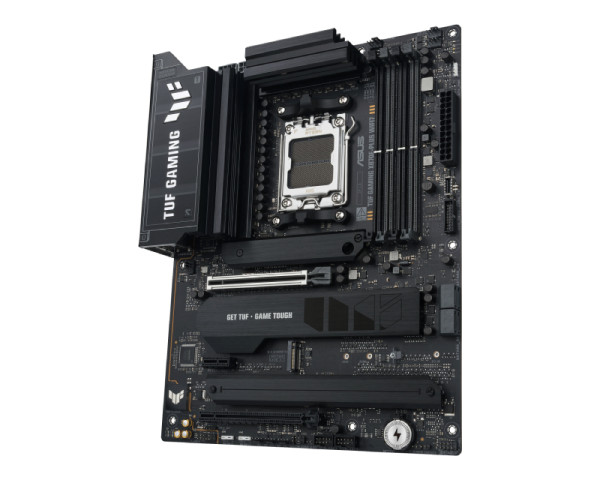

ASUS TUF GAMING X870E-PLUS WIFI7 matična ploča(PLO03771)
47.900,00 rsd.
Kupovinom ovog proizvoda ostvarujete popust na kompatibilne proizvode.
| Procesorsko ležište (socket) | AMD AM5 |
| Čipset | AMD X870E |
| Tip memorije | DDR5 |
| Memorijski slotovi | 4 |
| Podržane memorije | 8.000MTS (O.C.) |
| Maksimalna ukupna memorija | 256GB |
| Ostale osobine | Podrška za non-ECC UDIMM memory, Podrška za ECC UDIMM memory, Dual Channel, Podrška za AMD EXTended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP) |
| PCI Express x16 slot | 1x PCI Express 5.0 (x16 mode), 1x PCI Express 4.0 (x8x4 mode) |
| PCI Express x1 slot | 1x PCI Express 3.0 |
| PCI slot | 3 |
| SATA priključci (ukupno) | 4 |
| SATA priključci | 4x SATA 6GBs |
| Broj M.2 slotova | 4 |
| Podržani M.2 formati | 1x 2280 (podrška za PCIe 5.0 x4 mod), 1x 2280 (podrška za PCIe 4.0 x4 mod), 1x 2242 2260 2280 22110 (podrška za PCIe 5.0 x4 mod) |
| RAID | RAID 0, RAID 1, RAID 10, RAID 5 |
| Žična mreža (LAN) | 1010010002500 Mbps (2.5GbE) |
| Model | Realtek |
| Wi-Fi | Da |
| Wi-Fi standard | 2x2 Wi-Fi 7 (802.11be) |
| Bluetooth | Da |
| Bluetooth verzija | 5.4 |
| Broj kanala | 7.1 |
| Model | Realtek ALC1220P |
| Napomena | Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, Audio Cover, Unique de-pop circuit |

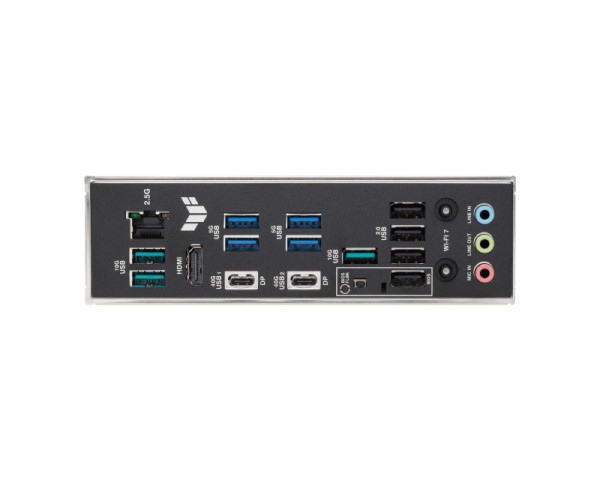

| Broj HDMI priključaka | 1 |
| HDMI priključci | 1x HDMI |
| Ukupno USB priključaka | 13 |
| Ukupno USB-C priključaka | 2 |
| USB-A priključci | 4x USB 2.0, 4x USB 5Gbps (3.2 Gen 1), 3x USB 10Gbps (3.2 Gen 2) |
| USB-C priključci | 2x USB 40Gbps (USB 4) |
| RJ-45 (LAN) | 1 |
| Audio | 3x 3.5mm |
| Ostali priključci | BIOS Flashback taster, 1x Wi-Fi Module |
| Naponski priključci | 1 x 24 pin Main Power connector, 2x 8-pin +12V CPU Power connectors |
| USB-A | 2 x podrška za 4 USB 2.0 porta, 1 x podrška za 2 USB 5Gbps porta |
| USB-C | 1 x podrška za 1 USB 20Gbps port |
| Audio | 1x Front panel audio |
| Ostali priključci | 1 x 4-pin AIO Pump header, 1 x 4-pin CPU OPT Fan header, 1 x 10-1 pin System Panel header, 1 x 4-pin CPU Fan header, 1 x Clear CMOS header, 3 x Addressable Gen 2 headers, 1 x Thermal Sensor header, 4 x 4-pin Chassis Fan headers, 1 x Chassis Intrusion header |
| Napomena | Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu |
| Podržane tehnologije | AURA Creator, AURA Sync, DIGI+VRM, Overvoltage Protection, Q-DIMM, Q-Slot, ESD Guards, VRM heatsink design, SafeDIMM, ASUS UEFI BIOS EZ Mode, ASUS CrashFree BIOS 3, ProCool, Stainless-Steel Back IO, BIOS FlashBack button, Q-Antenna, TUF Gaming CPU-Z, TUF LANGuard, Pre-mounted IO shield, AI Overclocking, SafeSlot, BIOS FlashBack LED, M.2 heatsink, AI Advisor, Q-Dashboard, TurboV Core, GlideX, Armoury Crate, DriverHub, M.2 Q-Latch, Fan Xpert 4, DTS Audio Processing, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Addressable Gen 2 headers, PCIe Slot Q-Release Slim, USB Wattage Watcher, ASUS MyHotkey |
| Format | ATX |
| Dimenzije | 305mm x 244mm |

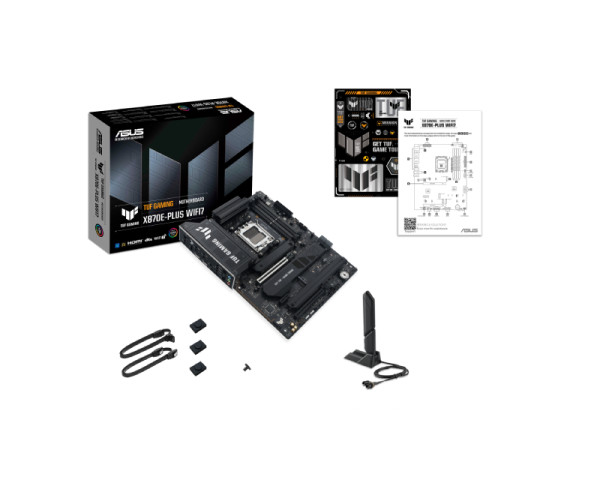

| Pakovanje | Šrafovi, 2 x SATA 6Gbs kabl, 1 x Quick Start Guide, 1 x Screw package for M.2 SSD, 1 x ASUS Wi-Fi antena, 2 x M.2 gumice |
| Reklamacioni period | 36 meseci |
