| Osnovne karakteristike | |
| Mreža | | Standardi | IEEE 802.1ab, IEEE 802.1d, IEEE 802.1w, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1x, IEEE 802.3x Flow Control, IEEE 802.1q | | Protokoli | LACP, QoS, IGMP Snooping, MVR, MLD Snooping | | Protok | 8x101001000 Base-T | | Switching | 20Gbps | | Forwarding | 14.89Mpps |
|
| MAC adrese | | Tabela | 8k | | Ručni unos | Da | | Automatsko učenje | Da | | Automatsko zastarivanje | Da | | Filtriranje | Da | | Ostalo | Maksimalno 64 pravila za filtere, MAC ACL, MAC Vlan, IPMAC Port Binding |
|
| VLAN | | Kapacitet | 4k | | Standardi | IEEE 802.1q | | QinQ | Da | | Ostalo | Voice VLAN, VLAN tagging, VLAN Group, Protocol VLAN, MAC VLAN, GVRP, VLAN VPN |
|
| IPv6 | | Host | Da | | Statičke rute | Da | | ACL | Da | | MLD | Da |
|
| Zaštita | | Monitoring | Ograničavanje portova, IEEE 802.3x kontrola protoka | | Ostalo | Loop protection, IP source guard, SNMP V1V2V3, Port Isolation | | Autentifikacije | 802.1x, RADIUS, AAA, IP+MAC binding based on port, SSH, SSHv2, SSL, TLS, TACACS+, ARP detection, HTTPS, DoS Defend, StaticDynamic Port Security, BroadcastMulticastUnicast Storm Control, IPPortMAC based access control |
|
| Memorija | |
| Dodatne funkcije | | Upravljanje | Web konfigurisanje, SNMP, System Log, Omada App, Zero-Touch Provisioning, DHCP Auto Install, CLI (konzola, Telnet i SSH), SNMP v3, SNTP, SDM Template, Cloud Access, MIBs, SNMP v2C, Centralized Management, Password Recovery, CPU Monitoring, L3 Management, QoS, DHCPBOOTP Client, 802.1ab LLDPLLDP-MED, Dual Image, Dual Configuration | | Dodatne funkcije | Port mirroring, Cable Diagnostics, EEE, Reboot Schedule, Link Aggregation, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Automatic Device Discovery, CPU Mirroring, Spanning Tree Protocol, DHCP Server, DHCP Relay, DHCP L2 Relay, Static ARP, Proxy ARP, Gratuitous ARP, Flow control, 16 IPv4IPv6 Interfaces, Static Routing, Loopback Detection | | Podržane tehnologije | IEEE802.3x Flow control | | Ostalo | Jumbo Frame do 9 KB, CE, FCC, RoHS sertifikovano, Mogućnost ugradnje u rack orman, Fanless |
|

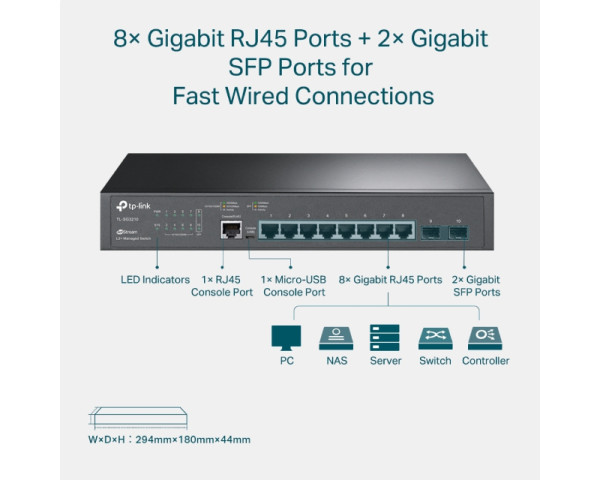

| Priključci pozadi | | RJ-45 | 8 (101001000Mbps) | | Optički | 2x SFP | | USB priključci | 1x Micro-USB Console Port | | Ostali priključci | 1x RJ45 console port |
|
| Fizičke karakteristike | | Dimenzije | 294mm x 180mm x 44mm | | Materijal | Metalno kućište | | Boja | Crna | | Pakovanje | Naponski kabl, 1X QIG, gumene nožice, Oprema za instaliranje unutar rack ormana |
|
| Ostalo | | Upravljanje | Web konfigurisanje |
|
| Reklamacioni period | | Reklamacioni period | 24 meseca |
|
