| Osnovne karakteristike | | Tip | Active PFC | | ATX standard | ATX 12V Ver. 3.0 | | Snaga | 1.250 W | | Klasifikacija efikasnosti | 80 Plus Gold | | Faktor snage | >0.9 | | Vrsta kablova | Modularni | | Sistemi zaštite | OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), SCP (Short-Circuit Protection), OPP (Over Power (Load) Protection), OTP (Over Temperature Protection), AFC (Automatic Fanspeed Control), SIP (Surge-Inrush Protection) |
|
| +12V naponske grane | | 1 | 104 A | | Maksimalna kombinovana snaga | 1.250W |
|
| Ostale naponske grane | | +5V | 22A | | +3.3V | 22A | | Maksimalna kombinovana snaga | 120W |
|

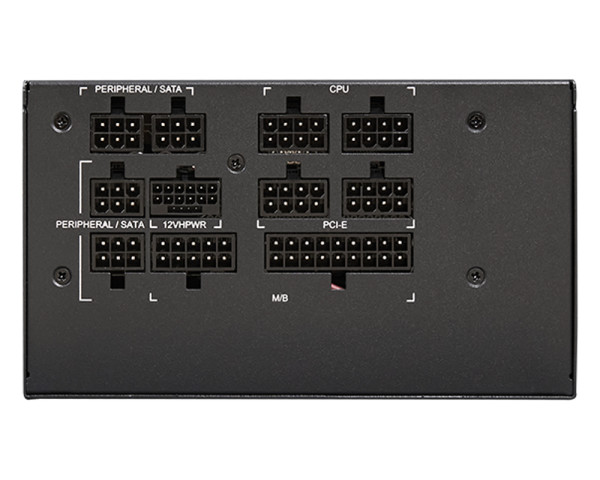

| Modularni priključci | | ATX 24pin | 24(20+4)pin | | ATX 8pin (EPS 12V) | 2x (4+4) pin, 4x (6+2) pin | | SATA | 12 | | Molex 4pin | 4 | | Ostali priključci | 16pin PCIe GEN5 |
|

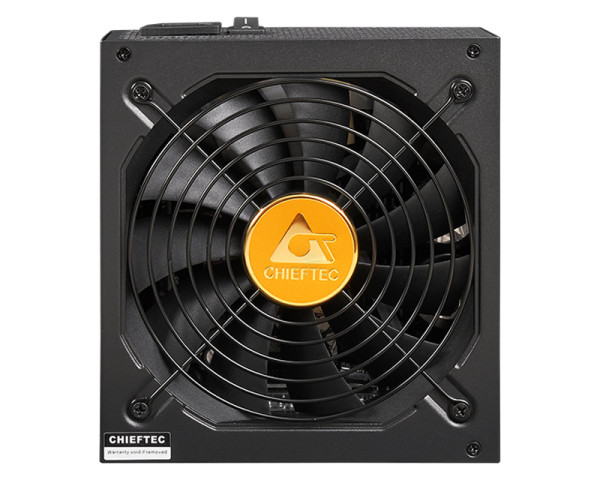

| Hlađenje | | Tip | Aktivno | | Broj ventilatora | 1 | | Dimenzije ventilatora | 135mm x 135mm | | Dodatne funkcije | Fluid Dynamic Bearing (FDB) |
|
| Fizičke karakteristike | | Format | ATX | | Dimenzije | 160mm x 150mm x 86mm | | Masa | 3.01kg |
|
| Reklamacioni period | | Reklamacioni period | 60 meseci |
|
