| Osnovne karakteristike | | Procesorsko ležište (socket) | AMD AM5 | | Čipset | AMD X870E | | Grafika | Upotreba grafike iz procesora |
|
| Memorija | | Tip memorije | DDR5 | | Memorijski slotovi | 4 | | Podržane memorije | Podržava DDR5 memorije do 9.600+MTs (O.C.) | | Maksimalna ukupna memorija | 256GB | | Ostale osobine | Podrška za Unbuffered ECC memoriju, Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP), NitroPath DRAM Technology, DIMM Fit, DIMM Fit Pro |
|
| Slotovi | | PCI Express x16 slot | 1x PCI Express 4.0 (x4 mode), 1x PCI Express 4.0 (x8x4 mode) 5.0 (x16 mode) | | PCI slot | 2 |
|
| Skladišni interfejs | | SATA priključci (ukupno) | 4 | | SATA priključci | SATA III 6Gbps | | Broj M.2 slotova | 5 | | Podržani M.2 formati | 3x 2280 (podrška za PCIe 4.0 x4 mod), 2x 2242 2260 2280 (podrška za PCIe 5.0 x4 mod i PCIe 4.0 x4 mod) | | RAID | RAID 0, RAID 1, RAID 10, RAID 5 |
|
| Mreža | | Žična mreža (LAN) | 5GBase-T (Gigabit) | | Model | Realtek | | Wi-Fi | Da | | Wi-Fi standard | MediaTek Wi-Fi 7 MT7927 | | Bluetooth | Da |
|
| Audio | | Broj kanala | 8 (7.1) | | Model | Realtek ALC4080 Codec, ROG SupremeFX | | Napomena | Audio Shielding, Jack-detection, Multi-streaming, Premium audio capacitors, Audio Cover, Podrška za SPDIF izlaz, Savitech SV3H712 AMP, Supports up to 32-Bit384 kHz playback, Gold-plated jacks, High quality 120dB SNR stereo playback output and 110dB SNR recording input, Impedance sense for front and rear headphone outputs, Front Panel MIC Jack-retasking, Podrška za LHDC high-definition bluetooth audio codec, transmission with up to 400 kbps bitrate and 24-bit192 kHz |
|

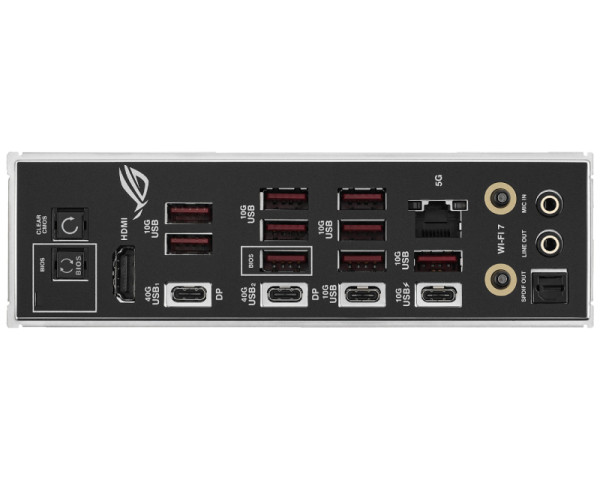

| Priključci na zadnjem panelu | | DisplayPort priključci | Da preko USB-C | | Broj HDMI priključaka | 1 | | HDMI priključci | 1x HDMI 2.1 | | Ukupno USB priključaka | 13 | | Ukupno USB-C priključaka | 4 | | USB-A priključci | 9x USB 10Gbps (3.2 Gen 2) | | USB-C priključci | 2x USB 40Gbps (USB 4), 2x USB 10Gbps (3.2 Gen 2) | | RJ-45 (LAN) | 1 | | Audio | 2x 3.5mm, 1x SPDIF optički | | Ostali priključci | BIOS Flashback taster, 1x Clear CMOS dugme, 1x Wi-Fi Module |
|
| Unutrašnji priključci | | Naponski priključci | 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector | | USB-A | 2 x podrška za 4 USB 5Gbps porta, 3 x podrška za 6 USB 2.0 porta | | USB-C | 2 x podrška za 1 USB 20Gbps port | | Audio | 1x Front panel header | | Ostali priključci | 4 x SATA 6Gbs ports, 1 x Thermal Sensor header, 1 x Chassis Intrusion header, 1 x CPU Over Voltage jumper, 1 x Start button, 1 x AIO Q-Connector, 5 x M.2 slots (Key M), 1 x 10-1 pin Front Panel System header, 1 x Alteration PCIe mode switch, 1 x 4-pin CPU Fan header(s), 1 x 4-pin CPU OPT Fan header(s), 1 x 4-pin AIO Pump header(s), 5 x 4-pin Chassis Fan header(s), 3 x Addressable RGB Gen 2 header(s) | | Napomena | Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu |
|
| Ostale karakteristike | | Podržane tehnologije | AURA Sync, LANGuard, UEFI Bios, Armoury Crate, Extreme Engine Digi+, FlexKey, Asynchronous Clock, ASUS Thermal Solution, ASUS EZ DIY, AI Cache Boost, AMD RAIDXpert2 Technology, ASUS Q-Design, ROG Exclusive Software, ASUS Exclusive Software, ASUS DriverHub, Integrated WiFi Driver Support, AI Overclocking Guide |
|

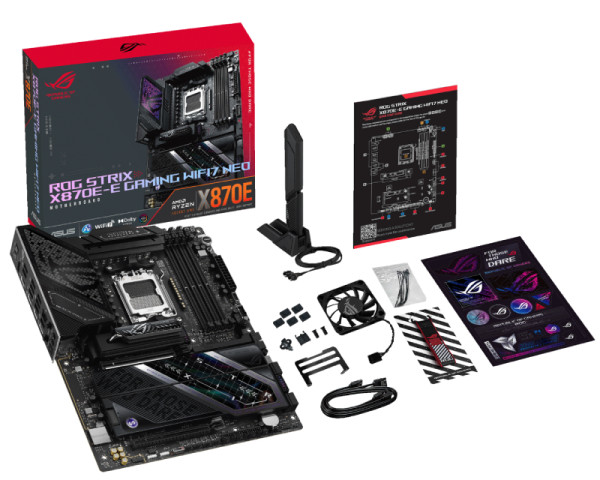

| Fizičke karakteristike | | Format | ATX | | Dimenzije | 305mm x 244mm | | Pakovanje | 2 x SATA 6Gbs kabl, 1 x Quick Start Guide, 1 x ASUS WiFi Q-Antenna, 1 x DDR5 fan holder, 1 x ROG assistant fan (60mm), 1 x Screw package for cooling kit, 1 x M.2 Q-Latch package, 1 x M.2 Q-Slide package, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x Cable ties package, 1 x ROG Strix thank you card, 5 x M.2 rubber package(s) |
|
| Reklamacioni period | | Reklamacioni period | 36 meseci |
|
