| : Osnovne karakteristike | | Tip | : Active PFC | | ATX standard | : ATX 12V Ver. 3.1 | | Snaga | : 750 W | | Klasifikacija efikasnosti | : 80 Plus Gold | | Faktor snage | : >0.9 | | Vrsta kablova | : Potpuno modularni | | Sistemi zaštite | : OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), SCP (Short-Circuit Protection), OPP (Over Power (Load) Protection), OTP (Over Temperature Protection), AFC (Automatic Fanspeed Control), SIP (Surge-Inrush Protection) |
|
| : +12V naponske grane | | 1 | : 62.5A | | Maksimalna kombinovana snaga | : 750W |
|
| : Ostale naponske grane | | +5V | : 20A | | +3.3V | : 20A | | Maksimalna kombinovana snaga | : 100W |
|

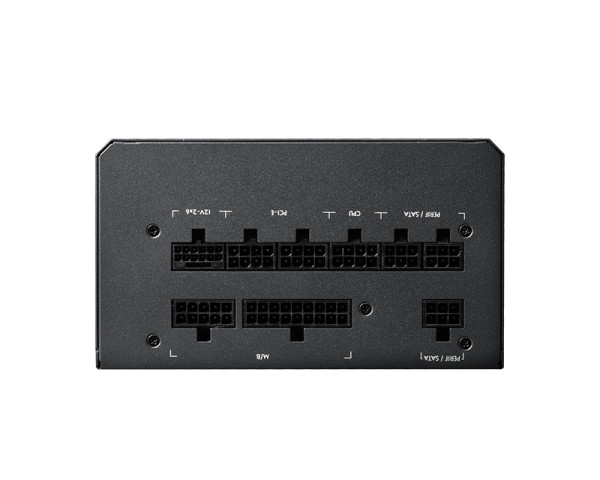

| : Modularni priključci | | ATX 24pin | : 24(20+4)pin | | ATX 8pin (EPS 12V) | : 1x (4+4)pin, 1(8)pin | | PCI Express 8pin | : 4x (6+2) pin | | SATA | : 6 | | Molex 4pin | : 3 | | Ostali priključci | : 1x 12V-2x6 |
|

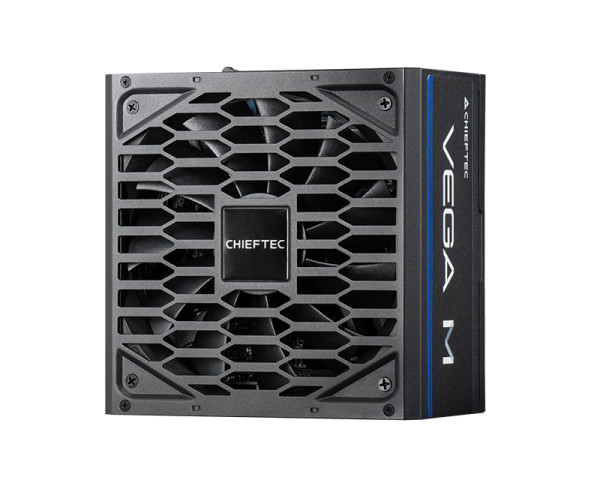

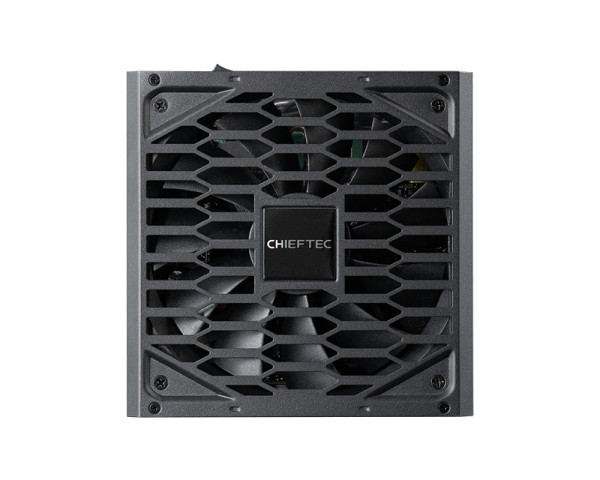

| : Hlađenje | | Tip | : Aktivno | | Broj ventilatora | : 1 | | Dimenzije ventilatora | : 135mm x 135mm |
|
| : Fizičke karakteristike | | Format | : ATX | | Dimenzije | : 150mm x 150mm x 85mm |
|
| : Reklamacioni period | | Reklamacioni period | : 60 meseci |
|
