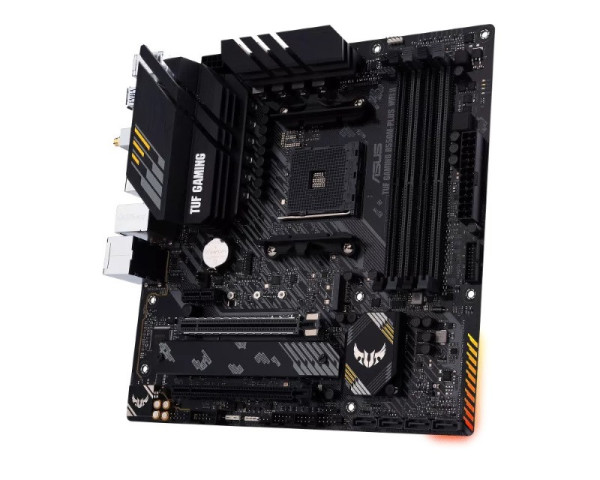

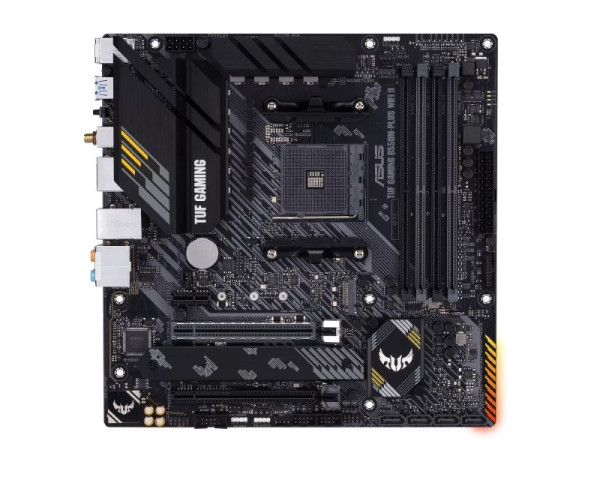

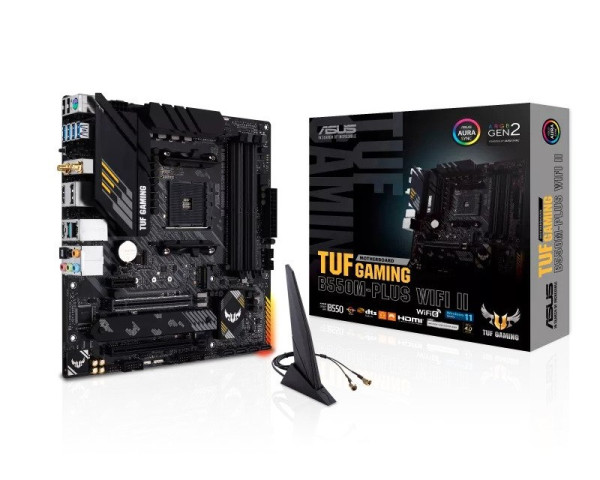

ASUS TUF GAMING B550M-PLUS WIFI II matična ploča(PLO03270)

https://nt.rs/images/products/big/68395.jpg

https://nt.rs/images/products/big/68401.jpg

https://nt.rs/images/products/big/68399.jpg

https://nt.rs/images/products/big/68397.jpg

Asus
TUF GAMING B550M-PLUS WIFI II matična ploča(PLO03270)

Name: ASUS TUF GAMING B550M-PLUS WIFI II matična ploča(PLO03270) - NT Company DOO
Brand: Asus
SKU: -1
Price: 16634 RSD
Availability: OutOfStock
Rating: 88 (20 reviews)

Šifra:

Barkod: 4711081305705

Brend: Asus

Web Cena: 16.634,00 rsd.

Osnovne karakteristike

Procesorsko ležište (socket)	AMD AM4
Čipset	AMD B550

Memorija

Tip memorije	DDR4
Memorijski slotovi	4
Podržane memorije	3.333Mhz (O.C.), 3.600Mhz (O.C.), 4.000Mhz (O.C.), 4.400Mhz (O.C.), 4.600Mhz (O.C.), 3.200MHz (O.C.), 3.733Mhz (O.C.), 3.466Mhz (O.C.), 3.866Mhz (O.C.), 4.133Mhz (O.C.), 4.266Mhz (O.C.), 4.800Mhz (O.C.), 3.400Mhz (O.C.), 4.466Mhz (O.C.), 4.866Mhz (O.C.), 4.333Mhz (O.C.), 2.800MHz (O.C.), 3.000MHz (O.C.), 2.933MHz (O.C.), 2.400MHz (O.C.), 2.133MHz (O.C.), 2.666MHz (O.C.), 4.200Mhz+ (O.C.)
Maksimalna ukupna memorija	128GB
Ostale osobine	Dual Channel

Slotovi

PCI Express x16 slot	1x PCI Express 4.0 (x16 mode), 1x PCI Express 3.0 (x4 mode), 1x PCI Express 3.0 (x16 mode)
PCI Express x1 slot	1x PCI Express 3.0

Skladišni interfejs

SATA priključci (ukupno)	4
SATA priključci	SATA III 6Gbps
Broj M.2 slotova	2
RAID	RAID 0, RAID 1, RAID 10

Mreža

Žična mreža (LAN)	2.5GBase-T (Gigabit)
Model	Realtek
Wi-Fi	Da
Wi-Fi standard	Wi-Fi 6 (802.11ax)
Bluetooth	Da
Bluetooth verzija	5.2

Audio

Broj kanala	8 (7.1)
Model	Realtek ALC897 Codec
Napomena	Audio Shielding, Audio Cover, PCB izolacija

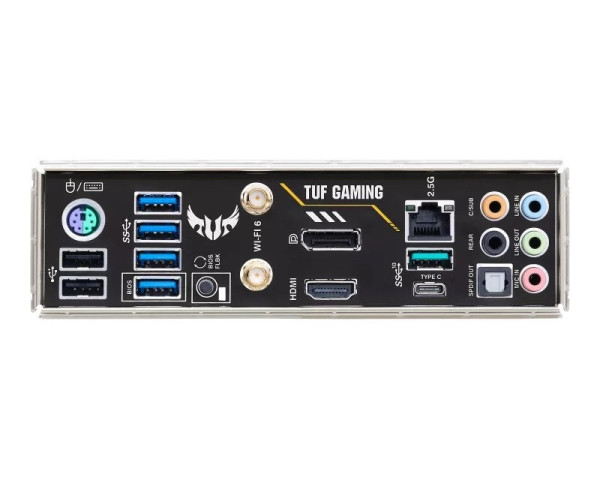

Priključci na zadnjem panelu

Broj DisplayPort priključaka	1
Broj HDMI priključaka	1
Ukupno USB priključaka	8
Ukupno USB-C priključaka	1
USB-A priključci	2x USB 10Gbps (3.2 Gen 2), 2x USB 2.0, 4x USB 5Gbps (3.2 Gen 1)
RJ-45 (LAN)	1
Audio	5x 3.5mm
Ostali priključci	BIOS Flashback taster

Unutrašnji priključci

Naponski priključci	1x 8 pin 12V Power Connector, 1 x 24 pin Main Power connector
USB-A	2 x podrška za 1 USB 2.0 port, 1 x podrška za 1 USB 5Gbps port
Audio	1x Front panel audio
Ostali priključci	1 x speaker header, 1 x 4-pin CPU OPT Fan header, 1 x 10-1 pin System Panel header, 1 x 4-pin CPU Fan header, 1 x Clear CMOS header, 1 x COM Port header, 1 x 14-1 pin SPI TPM header, 1 x RGB Header, 2x Chassis Fan connectors (2 x 4-pin)
Napomena	Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu

Fizičke karakteristike
